oidc-agent
https://indigo-dc.gitbook.io/oidc-agent/

• Goals:
  • Provide Access Tokens to user
  • Minimal user interaction
• Analogy to ssh-agent is intentional:
  • Runs on local workstation of the user
  • Stores “private keys” on local workstation of the user
  • oidc-gen: Generate an OIDC configuration
  • oidc-add: Load an OIDC configuration
  • oidc-token: Obtain OIDC Access Tokens

Security

• oidc-agent uses Refresh Tokens
  • Require high level of protection
• Encrypted storage on disk
• Obfuscated storage in RAM

Using oidc-agent

• Once in a life time (~1 Year): Create a configuration: (triggers an auth-code-flow; device-code-flow is also supported)

  oidc-gen eduteams --issuer https://proxy.eduteams.org  --scope max

  ---

• Once per reboot: Load encrypted configuration into memory (triggers password prompt; GUI or cmdline; May be skipped)

  oidc-add eduteams

  ---

• Often: Obtain token:
  (Auto-adds config, when oidc-add was skipped)

  oidc-token eduteams
  oidc-token https://proxy.eduteams.org

Use case 1

• “Authenticated access to remote services”

  URL=https://proxy.eduteams.org; \
      curl $URL/OIDC/userinfo -H "Authorization: Bearer `oidc-token $URL`" | jq

Solved

Bottomline oidc-agent

• Use case #1 solved: “Authenticated access to API”:
• Supported Platforms:


mytoken
https://mytoken-docs.data.kit.edu

• Goals:
  • Provide Access Tokens to long-running jobs
  • No interaction with the user
  • DO NOT release Refresh Tokens to the infrastructure
• Challenge:
  • Balance Security vs. Convenience
• Approach:
  • Introduce mytoken server: Obtains Refresh Token via authorisation code flow.
  • Introduce new token type, called “mytoken”
  • Refresh Tokens (stay on server) are encrypted with mytoken (given to client)

Balance Security vs. Convenience

• mytokens are jwt style tokens, that

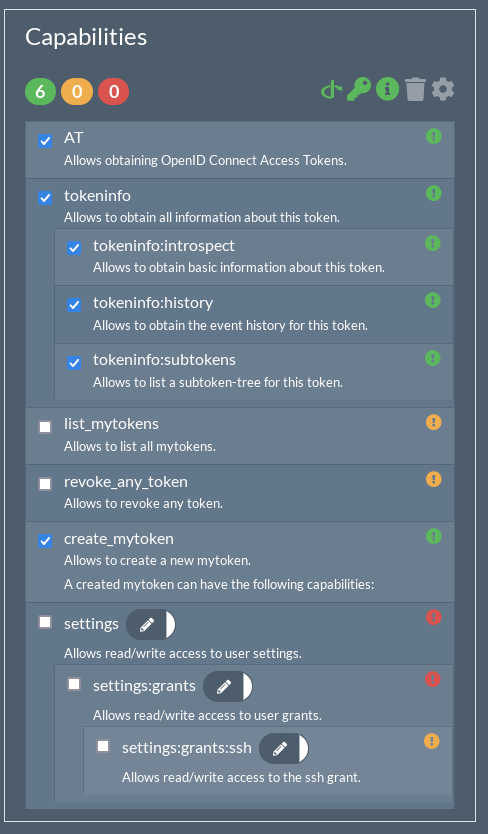

  • contain Capabilities: “What can I do with the mytoken”

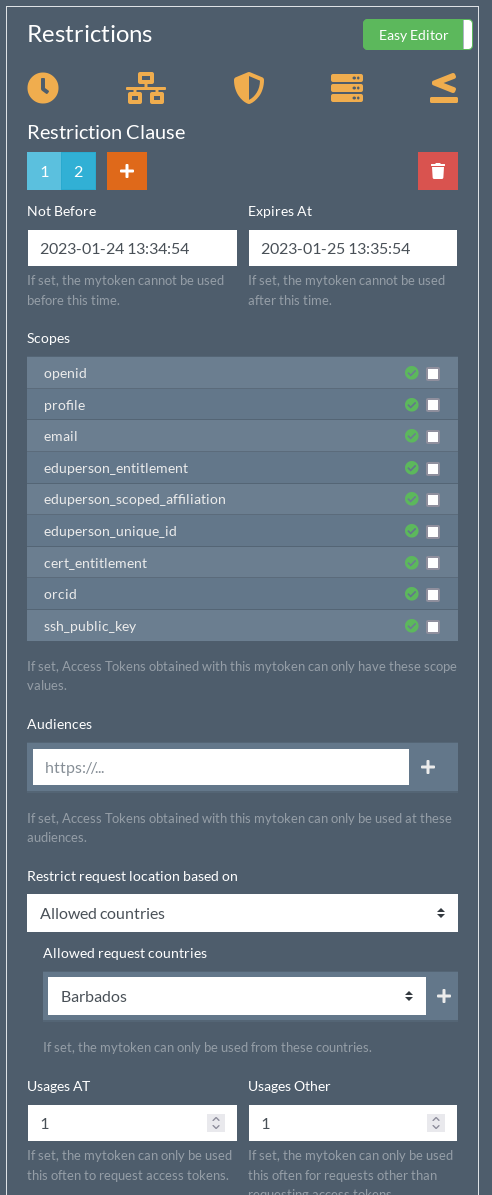

  • contain Restrictions: “What are the limits to use the mytoken”
  • support inheritance: “Use mytoken to derive another more limited mytoken”
• See it life and in colour:
  • https://mytoken.data.kit.edu
  • https://mytoken-docs.data.kit.edu

Demo

• The following examples are also shown in the live demo
• Obtain a mytoken:
  1. Via commandline:

  mytoken MT --oidc --issuer https://proxy.eduteams.org

  2. Via web: from the mytoken server
• We store the mytoken obtained in $MYTOKEN

Examples

• Inspect the mytoken:

  $ echo $MYTOKEN | decodejwt.sh

  {
      "alg": "ES512",
      "typ": "MT+JWT"
  }
  {
  "ver": "0.6",
  "token_type": "mytoken",
  "iss": "https://mytoken.data.kit.edu/",
  "sub": "N071dtAYzya4W32aHGXaze07ywqKMZ/2B2MSVY4uBuw=",
  "seq_no": 1,
  "aud": "https://mytoken.data.kit.edu/",
  "oidc_sub": "7ca006d6b7e61023cec493a74e57849ae9145815@eduteams.org",
  "oidc_iss": "https://proxy.eduteams.org",
  "exp": 1674835490,
  "nbf": 1674144337,
  "iat": 1674144337,
  "auth_time": 1674144337,
  "jti": "0502ae85-1dde-44a0-8965-5db2360fe4ed",
      [...]
  }

Examples

• Inspect the mytoken (continued)

  [...]
  "capabilities": [
      "AT",
      "tokeninfo"
  ],
  "restrictions": [
      {
          "exp": 1674230630
      },
      {
          "nbf": 1674749030,
          "exp": 1674835490
      }
  ]

Examples

• Get another mytoken, using a $MYTOKEN:

  $ mytoken MT --restrictions '{
      "nbf": 1674760000,
      "exp": 1674800000,
      "usages_AT": 1,
      "geoip_allow": [
          "DE"
      ]
  }' --MT $MYTOKEN | decodejwt.sh

  [...]
      "capabilities": [
          "AT",
          "tokeninfo"
      ],
      "restrictions": [
          {
              "exp": 1673969694,
              "exp": 1674600000,
              "usages_AT": 1,
              "usages_other": 1
          }
      ]
  }

Examples

• Get an Access Token from a mytoken:
  Find decodejwt.sh here.

  $ mytoken AT --MT $MYTOKEN | decodejwt.sh

  {
      "alg": "RS256",
      "typ": "JWT",
      "kid": "PUYOirA3Y-d_dGpdj4iJDHw4zHa8IY-bhZdaEj0rjbU"
  }
  {
      "exp": 1673967087,
      "iat": 1673963487,
      "auth_time": 1673958960,
      "jti": "8ff30cdd-cbab-4ee8-bf9d-5e219fd55324",
      "iss": "https://aai.egi.eu/auth/realms/egi",
      "sub": "d7a53cbe3e966c53ac64fde7355956560282158ecac8f3d2c770b474862f4756@egi.eu",
      "typ": "Bearer",
      "azp": "mytoken",
      "session_state": "9336c983-befa-476c-b494-82a49f04d661",
      "scope": "openid eduperson_unique_id eduperson_scoped_affiliation eduperson_entitlement cert_entitlement ssh_public_key profile email orcid",
      "sid": "9336c983-befa-476c-b494-82a49f04d661",
      "authenticating_authority": "https://idp.scc.kit.edu/idp/shibboleth"
  }

Bottomline mytoken

• mytokens can be adjusted to the situation in which they are used
• mytokens can be as safe as possible – and as unsafe as necessary
• mytokens can be revoked
• mytokens can mostly be used just as any other OIDC JWT token
• mytoken server https://mytoken.data.kit.edu will soon be hosted according to the EugridPMA Credential Store.
• Supported Platforms:

flaat
https://flaat.readthedocs.io

• Goals:
  • Python
  • Simple to use
  • Flexible to use
  • Just add “AAI” to python REST API

• flaat supports these web-frameworks
  • flask
  • fastapi
  • aiohttp

flaat

• Usage
  • Define requirement(s) (on user)
  • Use python decorator mechanism to enable access control
• Entitlements: flaat natively supports
  • AARC-G027
  • AARC-G069
• Can be used to support other profiles
  • e.g. WLCG or SciTokens
• Supported Platform:
  • python3.6+


Example

Require an authenticated user

# Endpoint which requires of an authenticated user
@app.get("/authenticated")
@flaat.is_authenticated()
def authenticated(request: Request,
    return "This worked: there was a valid login".

Example

Require an authenticated user to carry two entitlements

# The user needs belong to a certain virtual organisation
vo_requirement = get_vo_requirement(
    [
        "urn:geant:eduteams.org:service:eduteams:group:LAGO-AAI",
        "urn:geant:eduteams.org:service:eduteams:group:eduTEAMS",
    ],
    "eduperson_entitlement",
    match=2,
)

@app.get("/authorized_vo")
@flaat.requires(vo_requirement)
def authorized_vo(request: Request):
    return "This worked: user has the required entitlement(s)"

Bottomline flaat

• Simple support for enforcing AAI in python REST interfaces is available

Summary

• Using OIDC in REST APIs is
  • straightforward
  • on client and server
• The presented tools are a subset of available tools
• All tools are developed at Karlsruhe Institute of Technology (KIT)
• For questions:
  • Contact: hardt@kit.edu
