Long running compute

(Longer than lifetime of Access Token)

1. Load data at the beginning
2. Run computation, access other resources in between
3. Store data at the end
   Problem:

   • Access Tokens expire during the job
   • Access Tokens cannot be revoked
   • Access Tokens are difficult to be limited
   • Emerging Antipattern:
     • Long-lived Access Tokens

Goals

• Ensure availability of Access Tokens at any time
  • Allow short AT lifetime
  • No user interaction
• Address security adequately
• Add fine grained permissions to improve safety
• Support for multiple devices (Bearer Tokens)

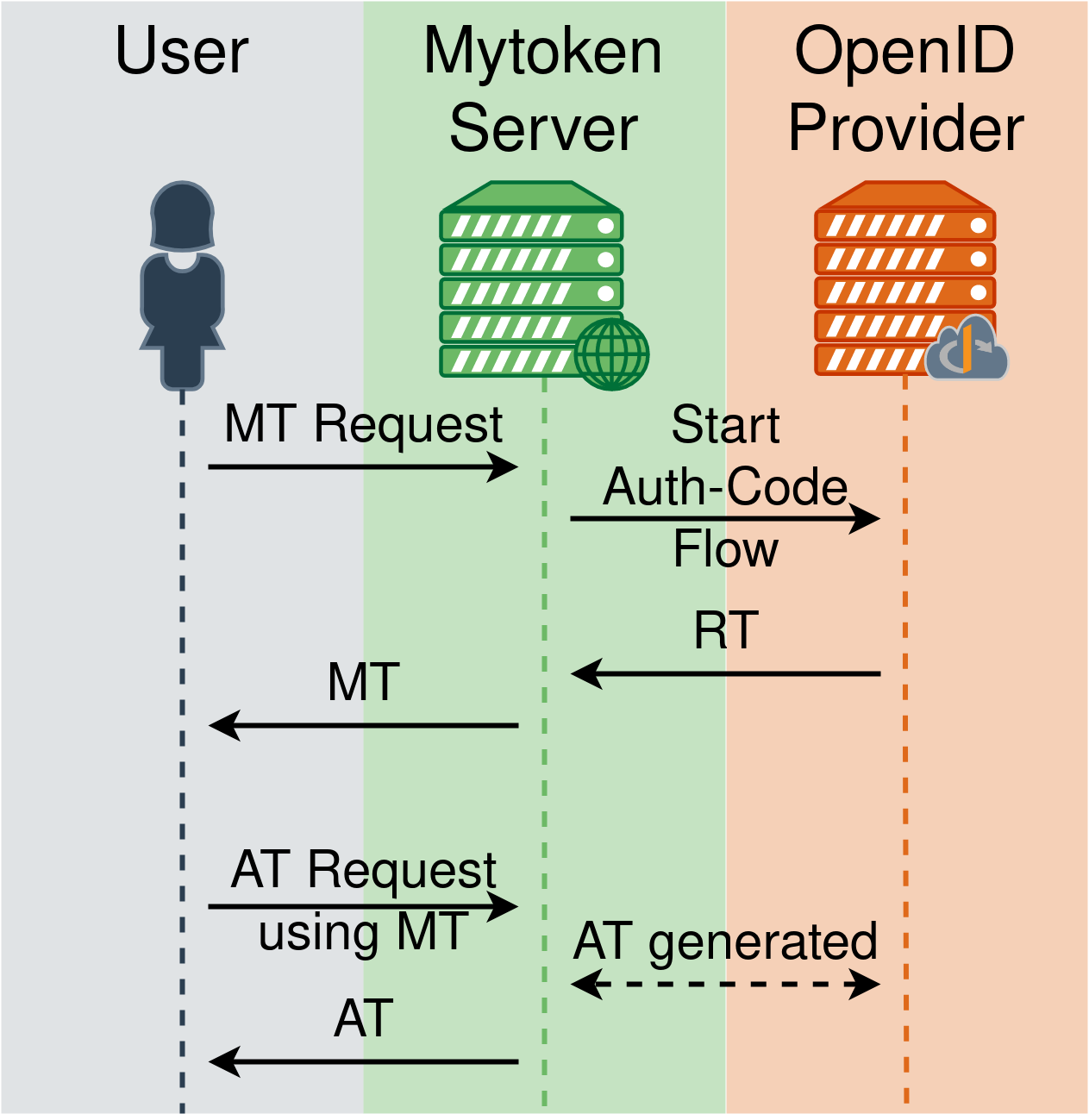

Basics

• Mytoken Server
  • Proxy for Refresh Tokens (RT)
  • Implemented similarly to OIDC
• User flow:
  1. Create mytoken (MT)
  2. Use MT to obtain
     • Access Tokens (AT)
     • Other mytokens

Adequate security

Is this even possible?

Capabilities

Define the actions allowed for a mytoken

• Examples:
  • Obtain Access Token
  • Create new mytoken
  • List / introspect mytokens

Restrictions

Reduce damage in case of loss

• Restrictions are flexible
  • Extensible restriction dimensions
  • Multiple restictions per token
• Typical restrictions:
  • Time, Location (IP, geoIP)
  • OIDC: scope, audience
  • Number of Usages

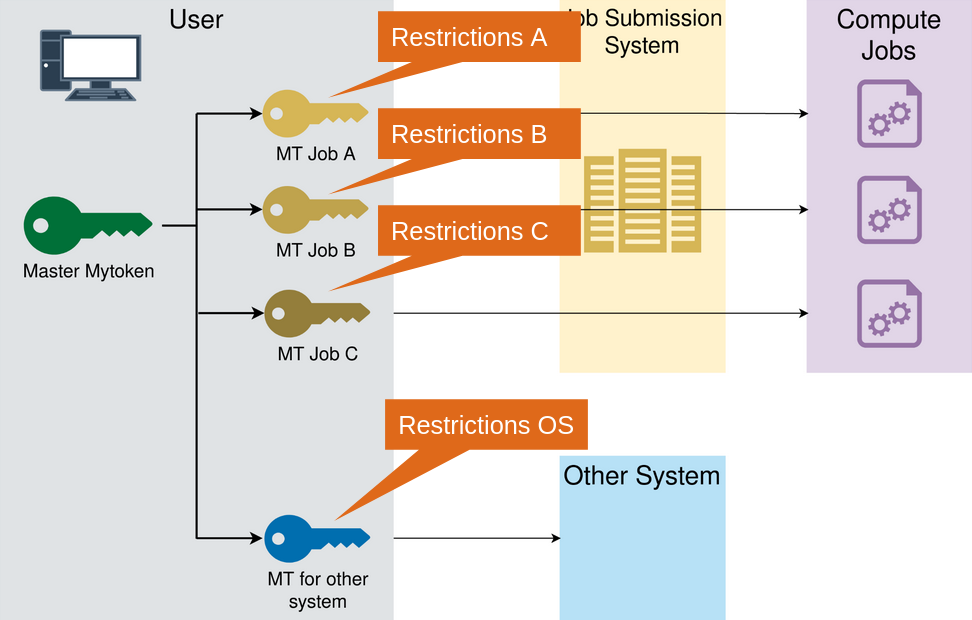

Hierarchies

• Mytokens can be used to create
  • Mytokens (with less privileges)
  • Access Tokens
• Only the mytoken is needed for this
• Typical scenario:
  • One “Master” mytoken on personal device
  • Subtokens for sending out to the infrastructure

Example case

Long running job

[{"exp"        :1634300000,
  "nbf"        :1634400000,
  "geoip_allow":["BE"],
  "scope"      :"compute.create",
  "audience"   :["fedcloud"]
 },{
  "exp"        :1634300000,
  "nbf"        :1634400000,
  "geoip_allow":["BE"],
  "scope"      :"storage.read",
  "audience"   :["se.cern.ch"]
 },{
  "exp"        :1635300000,
  "nbf"        :1635400000,
  "scope"      :"storage.write",
  "audience"   :["dcache.desy.de"]}]

Options

1. Command line
2. Web Interface https://mytoken.data.kit.edu
3. NEW: Mytoken APP
4. Existing Mytoken
   • Create sub-token from mytoken
     • Specific capabilities
     • Individual restrictions

• Btw: Transfer-Codes allow transferring token to different device
• Btw: oidc-agent also has support for mytoken

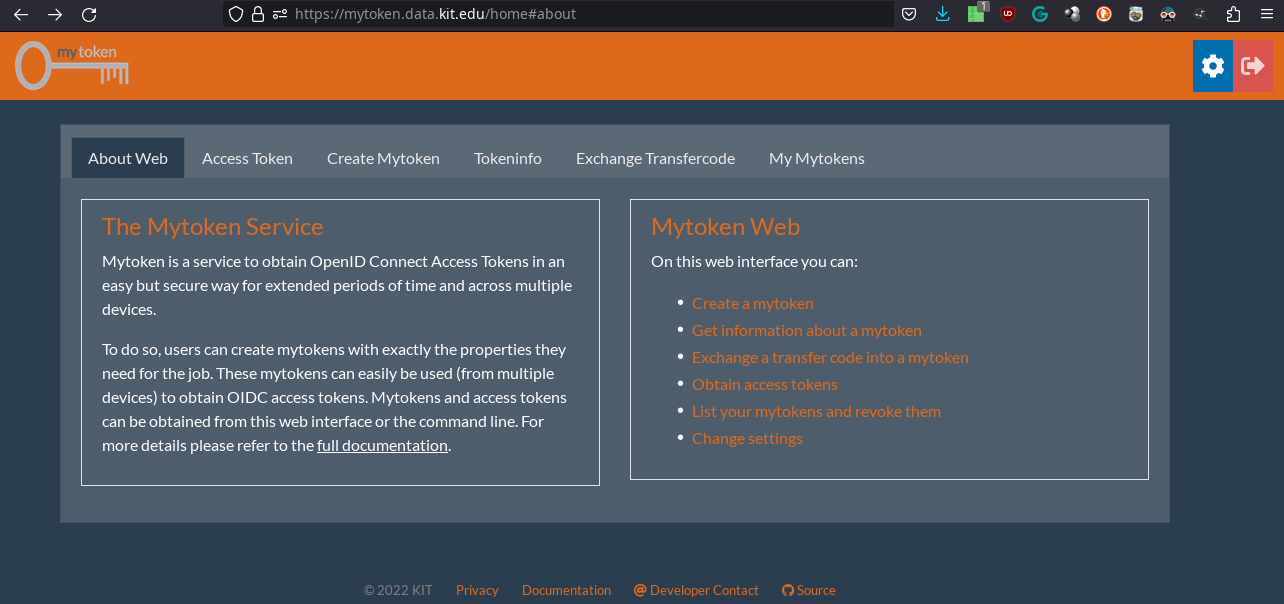

Web Interface

https://mytoken.data.kit.edu

Mytoken App

• https://git.scc.kit.edu/m-team/oidc/mytoken-app
• APK: http://repo.data.kit.edu/devel/android/

Mytoken developments

• Host mytoken server in the “credential store” Environment
  • Secured environment
  • Based on well defined policy
• Fault tolerance
  • Looking at RCauth as an example
• Smart ways of giving powerful tokens to the right people only
• Support for OIDC-FED

mytoken - Summary

• Mytokens offer one way of securing the infrastructure
  1. By allowing short-lived Access Tokens
  2. By being revocable
  3. With rich set of capabilities and restrictions
• Capabilities and Restrictions
  • Offer fine-grained control
  • Adequate balance for security vs usability
    • Potential security course for extended profiles
• https://mytoken.data.kit.edu

Links

Demo instance

https://mytoken.data.kit.edu

Documentation

https://mytoken-docs.data.kit.edu

Github

https://github.com/oidc-mytoken
