Different types of Account Linking

• Link federated identity to
  1. another federated identity
     • There is a logical relation between both identities
     • e.g. link an ORCID to your Home-ID
  2. a technical account
     • e.g. link Home-ID to unix account on an HPC Cluster

We focus on technical accounts, i.e. case 2.

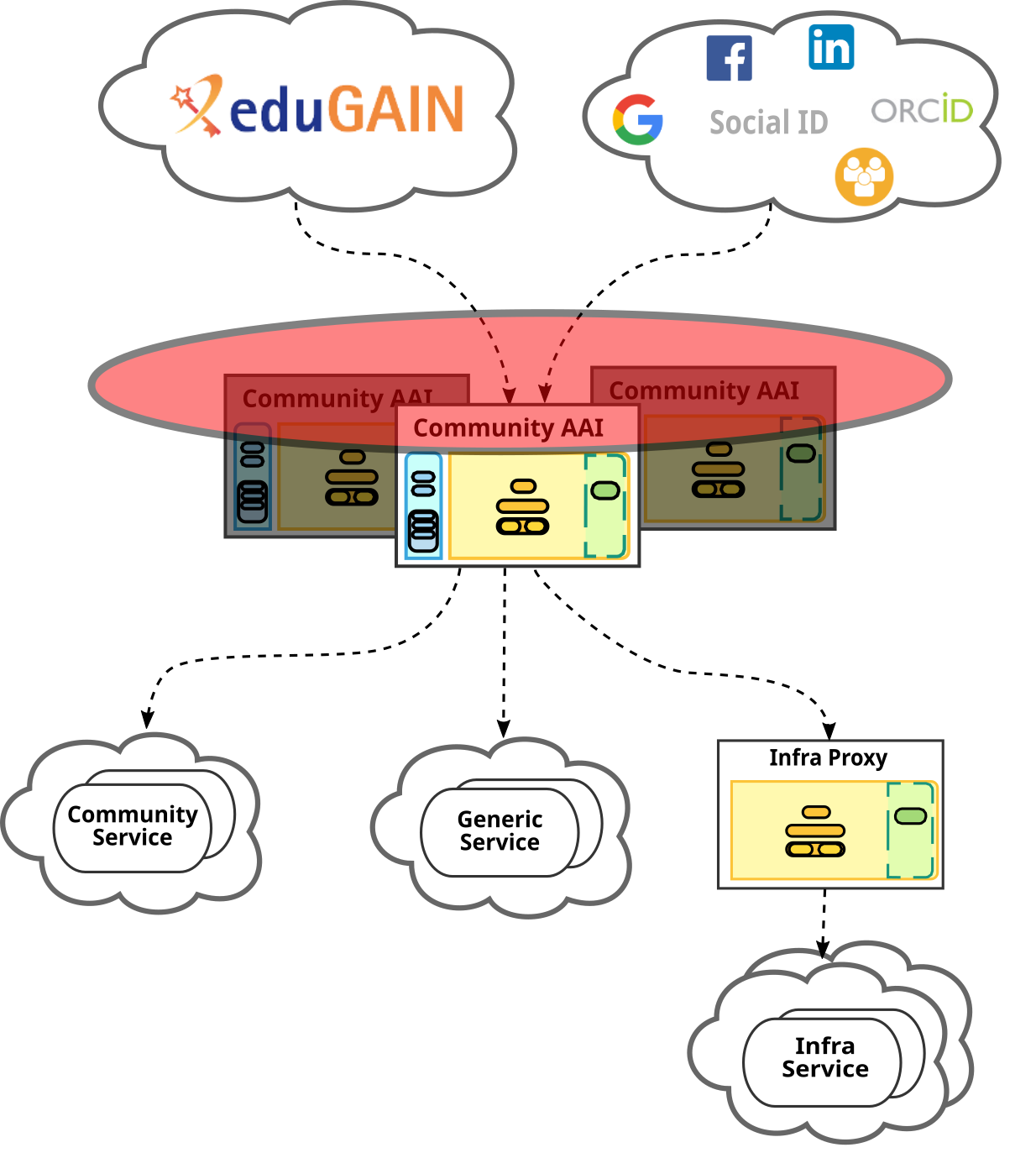

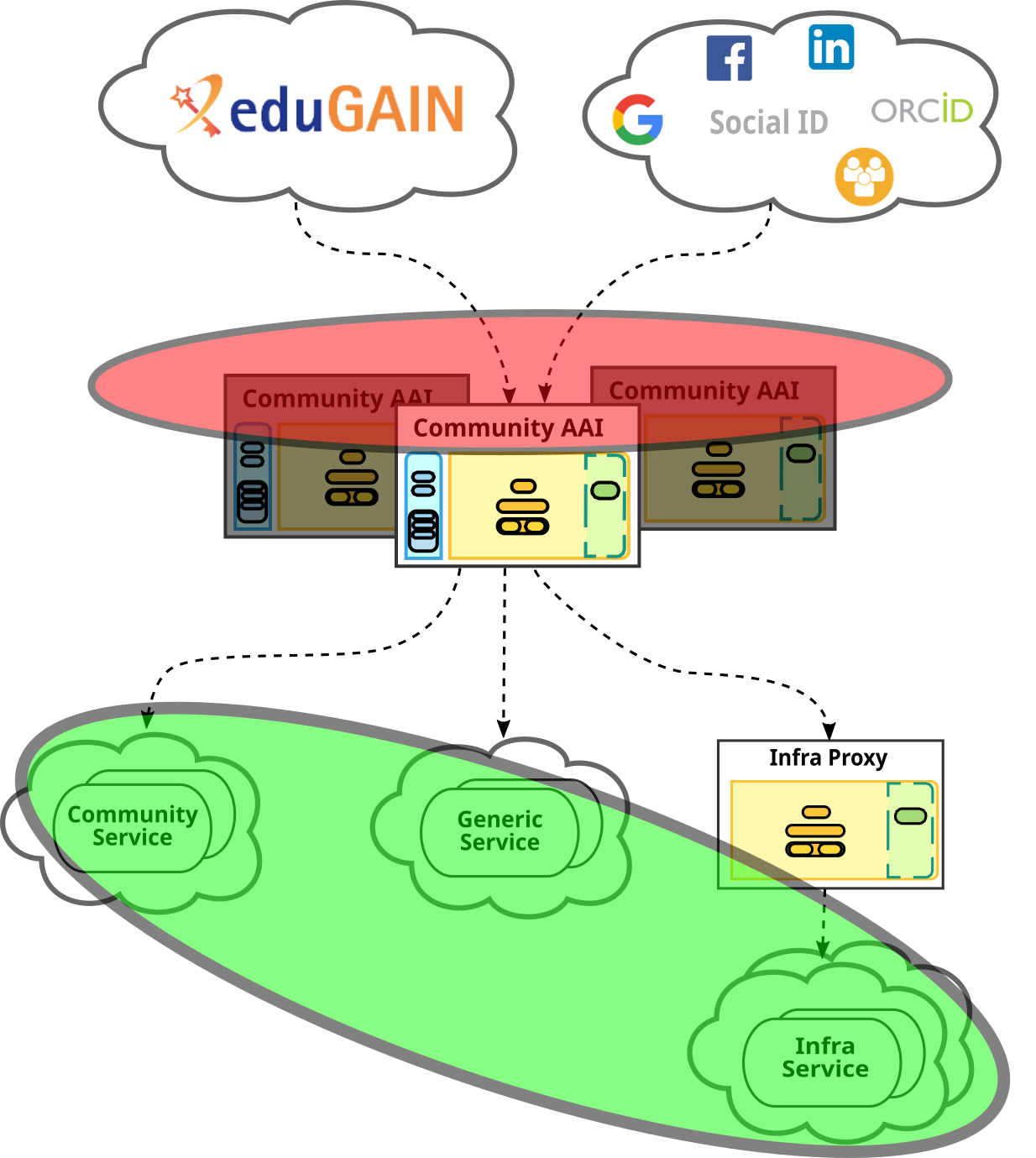

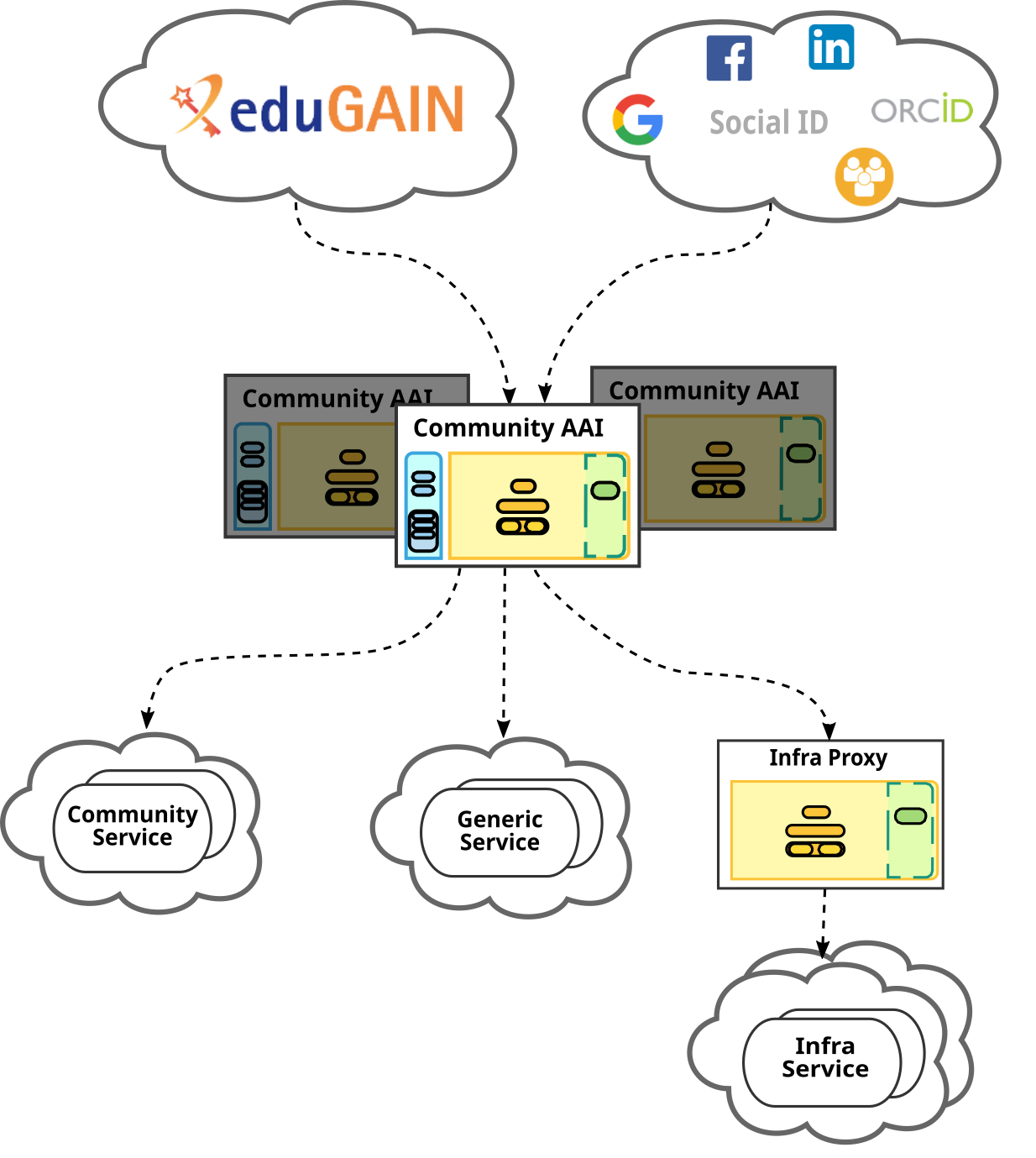

Where is ALISE linking accounts?

AARC-BPA-2019

Technical Note

• This kind of linking is actually provisioning
• This kind of linking MIGHT happen automatically
• We mean: “Site-local account linking”

Use Case

• Normally: account provisioning responsability of the site
• Grid tools were provisioning accounts on-the-fly
  • Based on information inside the X.509 certificate
• HPC Centres often don’t support anything on-the-fly
• Modern services need to store data for federated users
• Using the correct local user brings benefits
  • User can access storage via multiple paths
    • upload via webdav / scp
    • access from ssh / nfs
• This requieres correct and consistent mapping of
  • Federated users to local accounts
  • Entitlements / Groups / VOs to local groups

How does ALISE work?

• ALISE drives the transition
• For this to work, an existing local account is required
• ALISE web app offers two logins
  • First with techical computer centre account
  • Then with (multiple) federated accounts
• ALISE enabled tools use REST interface to obtain mappings
• ALISE may be self-hosted, or used as a service
  https://alise.data.kit.edu

Life demo (WEB)

• Account LInking SErvicE  (ALISE)
  https://alise.data.kit.edu

Life demo (REST)

curl  https://alise.data.kit.edu/api/v1/target/vega-kc/mapping\
      /issuer/$(urlencode.py https%3A%2F%2Flogin.helmholtz.de%2Foauth2)\
      /user/$(urlencode.py 6c611e2a-2c1c-487f-9948-c058a36c8f0e)\
      ?apikey=bnginyourdreamsinyourdreamslxbmu | jq

Example output

{
  "internal": {
    "sub": "3c498039-1754-4f9d-b71c-5c13739e8875",
    "iss": "https://sso.sling.si:8443/auth/realms/SLING",
    "username": "marcush",
    "last_seen": -930016800,
    "display_name": "Marcus Hardt"
  },
  "external": [
    {
      "sub": "d7a53cbe3e966c53ac64fde7355956560282158ecac8f3d2c770b474862f4756@egi.eu",
      "iss": "https://aai-demo.egi.eu/auth/realms/egi",
      "last_seen": 13552005600,
      "display_name": "Marcus Hardt"
    },
    {
      "sub": "104223951181002749851",
      "iss": "https://accounts.google.com/",
      "last_seen": 13552005600,
      "display_name": "Marcus H"
    },
    {
      "sub": "6c611e2a-2c1c-487f-9948-c058a36c8f0e",
      "iss": "https://login.helmholtz.de/oauth2",
      "last_seen": 13552005600,
      "display_name": "Marcus Hardt"
    }
  ]
}

API Key

Getting an apikey is simple:

curl  https://alise.data.kit.edu/api/v1/target/vega-kc/get_apikey \
      -H "Authorization: Bearer $(oidc-token egi)"

Current state

• Suppported Computer Centres:
  • VEGA
  • KIT
  • KBFI
  • PSNC (self-hosted instance)
• Supported Identity Providers:
  • EGI-Checkin
  • Google
  • Helmholtz-ID
  • (it’s trivial to add more)
• Services making use of ALISE:
  • dCache

Future Work

• Include more sites
• Support LDAP
• Integrate with ssh-oidc
• Support entilement / group based mapping

Questions

• https://alise.data.kit.edu
• codebase git@codebase.helmholtz.cloud:m-team/tools/alise.git
  https://codebase.helmholtz.cloud/m-team/tools/alise
• github git@github.com:m-team-kit/alise.git
  https://github.com/m-team-kit/alise

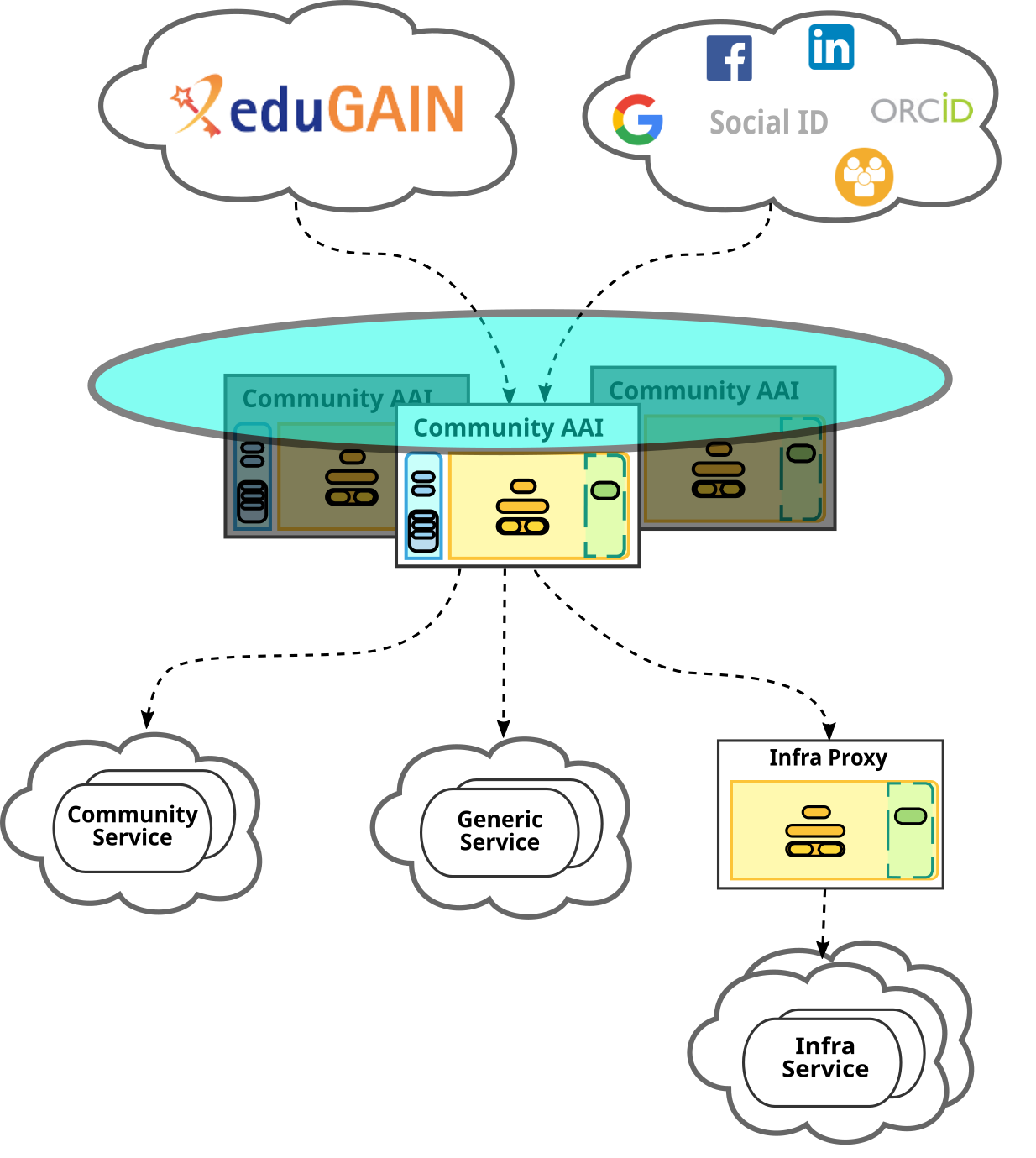

Account linking

(on the higher level)
